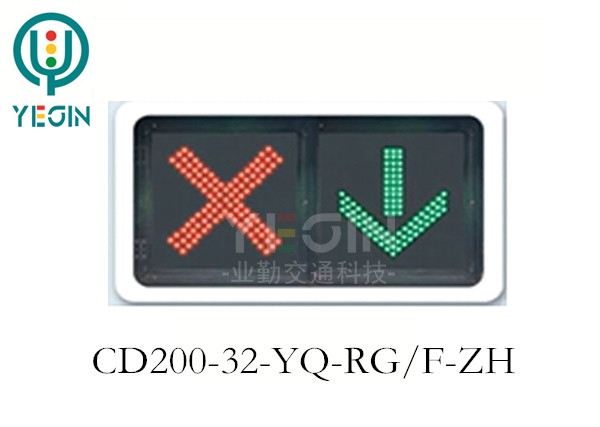

Red cross green arrow two unit (square) sheet metal

200mm red fork green arrow two unit (square) sheet metal

Brand: YEQIN

Material: sheet metal

Model: CD200-32-YQ-RG/F-ZH

Specification: 200mm

Technical Parameters

« Multiple seals, waterproof

« Meets GB/14887-2011 and relevant international standards

« Red light: LED single brightness: 4360-5250, wavelength: 620-625nm, left and right viewing angle: 30°, power: ≤20W.

« Green light: LED single brightness: 8667-10400, wavelength: 503-506nm, left and right viewing angle: 30°, power: ≤20W.

« Ambient temperature: -40°C~+80°C

« Working voltage: AC220V

« Lightbox housing material: PC

« IP rating: IP53

Visual distance ≥300m
